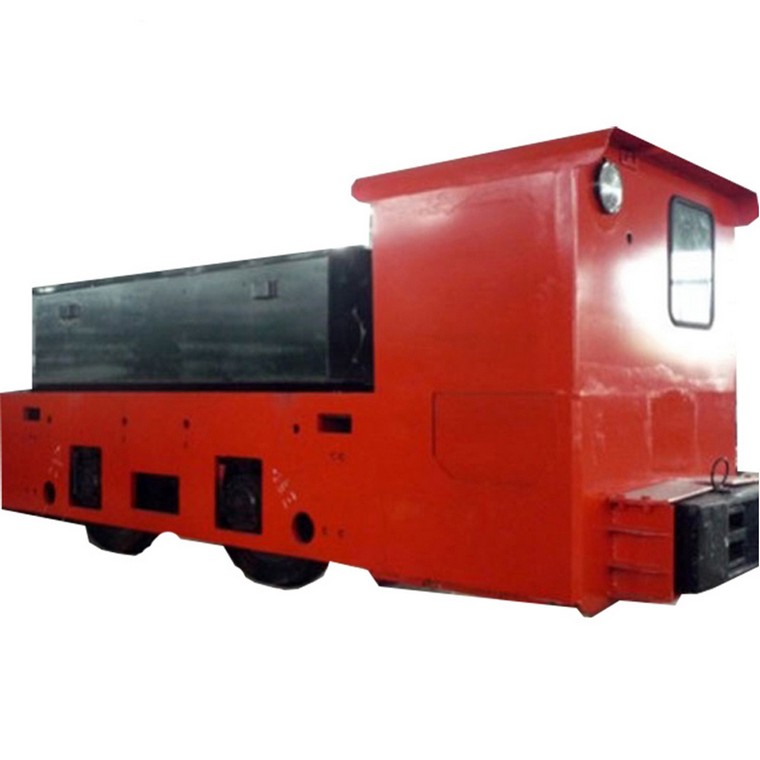

How To Judge The Battery Locomotive Is In Good Condition

With the popularity of battery locomotives in the market in recent years, many manufacturers have begun to cut corners and do not follow the standard manufacturing methods of battery electric locomotives. For the environment of electric locomotives, this can easily lead to accidents, so, When you buy a battery electric locomotive, you must first determine whether the battery electric locomotive is in good condition. The specific judgment method is as follows:

Frame:

1.No cracks or obvious deformation of the frame, no serious rust, the depth of the convexity of the side plate and the top plate should not exceed 30mm.

2. The buffer device is fixed firmly. The spring is not broken, and the telescopic length is not less than 30mm. The connection device is reliable, the wear of the contact pin hole and the connection pin does not exceed 20% of the original size, and the rigid contact does not exceed 25%.

3. There are no cracks or severe wear on the balanced beams, springs and hangers. The thickness of each leaf of the leaf spring should be the same, and it should keep the bow shape when carrying.

Wheel pairs:

1. The remaining thickness of the wheel tread wear is not less than 50% of the original thickness, the depth of the tread groove does not exceed 5mm, the height of the wheel flange does not exceed 30mm, and the thickness of the wheel flange does not exceed 30% of the original thickness. If it exceeds 2mm, the diameter difference between the front and rear wheels shall not exceed 4mm.

2. There must be no cracks on the axle, the depth of scratches should not exceed 2.5mm, and the amount of journal wear should not exceed 5% of the original diameter. The gap between the bearing box, gear box bearing box and the guide plate: no more than 5mm along the driving direction; no more than 9mm along the axle direction, the gear box is firmly fixed without damage and oil leakage.

Braking device:

1. Mechanical and electric braking devices are complete and reliable, the brake handwheel can rotate flexibly, the screw and nut are not loose, the connecting pins are not loose, and there is no shortage of oil, and the remaining thickness of brake shoe wear is not less than 10mm. The same brake The thickness difference between the two brake shoes of the rod is not more than 10mm. In the fully released brake state, the gap between the brake shoe and the wheel tread is 3-5mm.

2. When the brake is tight, the contact area is not less than 60%. The gap adjustment device is flexible and reliable. The height difference between the two ends of the brake beam is not more than 5mm. Brake brake device, the brake belt wear thickness is not less than 3mm, the gap between the brake belt and the brake wheel is 2-3mm, the brake belt is not broken, the copper rivet is firm, and the spring does not fail.
