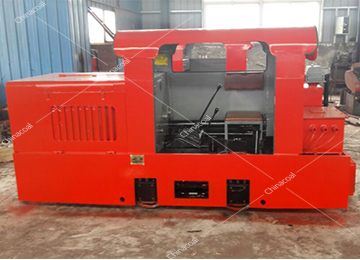

Inspection Of Electric Locomotive

The electric narrow gauge locomotive has played a great role in the transportation of the mine, but to ensure the working efficiency of the electric locomotive, it is necessary to check the whole machine from time to time to ensure that the performance is intact. Below, we take a look at the inspection items.

Check whether the brake, transmission rod (chain) of the braking system and its connecting parts are normal and complete.

Inspect the wheel for cracks, loose wheels, and wheel tread wear.

Check whether the gear box (hood) is fixed firmly and whether there is oil leakage;

Inspect the frame springs, hangers, and balance beams for cracks and severe wear; Check the connection device, and there must be no damage and wear exceeding the limit;

Whether the sand spreading device is flexible and reliable, and whether the sand outlet is aligned with the center of the rail surface;

Check narrow gauge locomotive whether the air compressor is operating normally, whether the air pipe is leaking, and discharge the waste oil and water in the air tank;

Check whether the commutator, carbon brush and brush holder of the air compressor motor are normal;

Check the pressure of the receiver spring, the degree of wear of the slide, and whether the receiver is flexible and complete.

Check the narrow gauge locomotive terminals and resistance elements of the resistor, and do not loosen or break them. Pay attention to the above 20 points, you can safely control your beloved motor vehicle.
