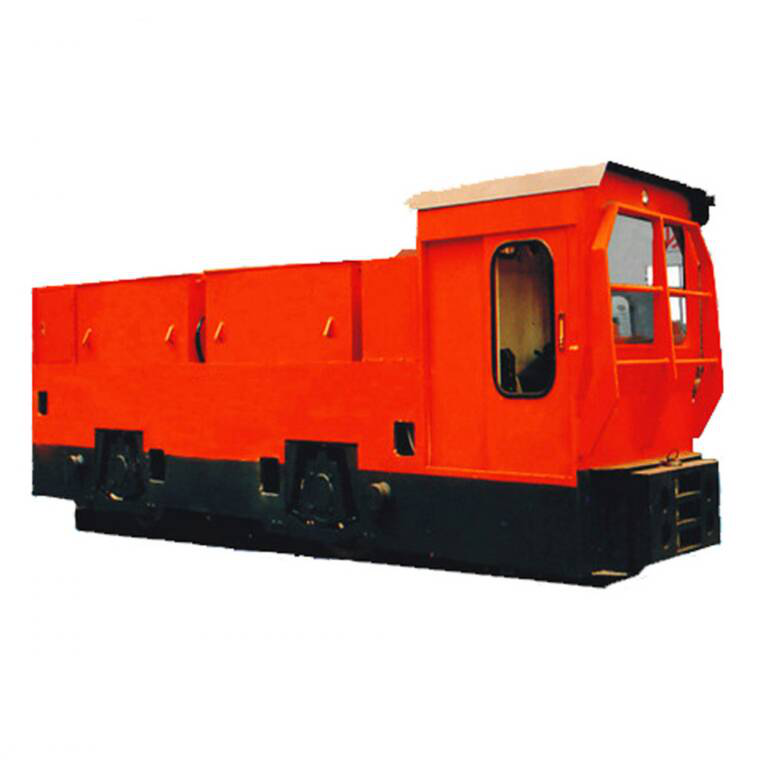

The Knowledge That Electric Locomotive Drivers Should Know

1. According to different transportation power, underground mining locomotive are divided into diesel locomotive, air compressor locomotive and electric locomotive.

2. According to the nature of power supply, there are two types of electric locomotive: DC and AC.

3. According to different power supply modes, electric locomotive is divided into stringing electric locomotive and battery electric locomotive.

4. The stringing electric underground mining locomotive is suitable for the main transportation roadway of low gas mine, but the roadway support must be incombustible material.

5. The electric locomotive for stringing uses pantograph to obtain electric energy from the stringing.

6. The adhesion mass of the electric locomotive is usually expressed in tons, which is equal to the total mass of the electric locomotive.

7. The electric locomotive works continuously on the fixed device for a long time, so that the temperature of any part is not higher than the allowable rated value. This working system is called the long-time system.

8. The underground mining locomotive shall be equipped with overload and short circuit protection devices. The traction network which is easy to be brought into underground power supply through ground stringing must also have atmospheric over-voltage protection device.

9. The electrical system of the electric locomotive shall be equipped with interlocking device to ensure that the electrical circuit combination of the electric locomotive is correct under any working condition.

10. There are three side holes on the side plate of the motor car frame, two for installing the axle box and the other for adjusting the brake shoe clearance.
