Do You Know The Working Principle Of The Electric Wire Locomotive

Do you know how the underground trolley mining locomotive works? If you don't know it doesn't matter! China Coal Mining Electric Locomotive Factory tell you!

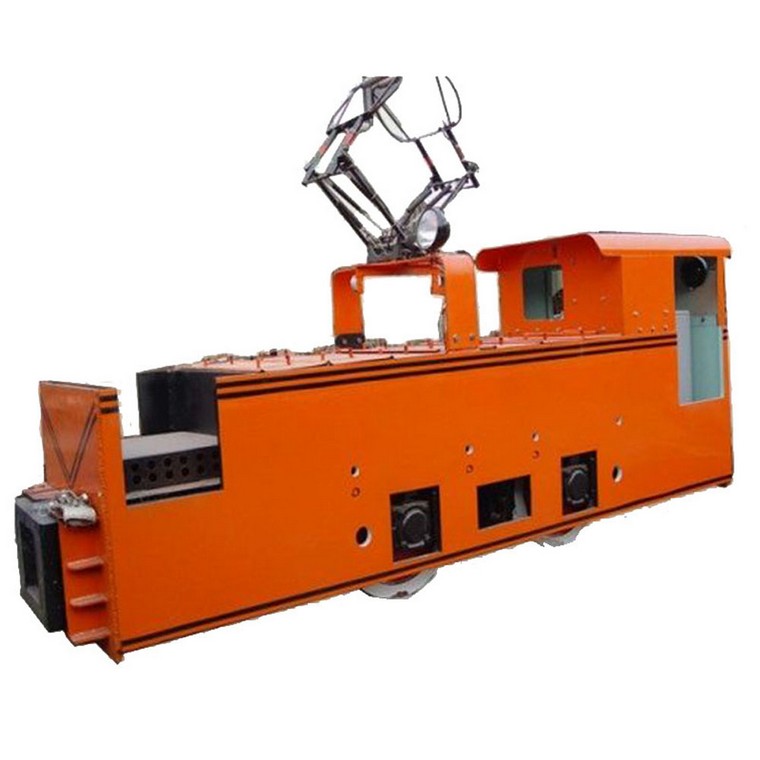

The narrow gauge locomotive of stringing type obtains electric energy from the circuit by means of pantograph. When the electric locomotive is running, the pantograph slides along the overhead line. The power supply mode of the stringing type narrow gauge locomotive is that the high-voltage cable from the central substation supplies the three-phase AC power to the traction substation, reduces the voltage through the transformer, and then sends it to the converter equipment through the low-voltage cable, so as to change the alternating current into the direct current.

The positive pole of the DC power supply is connected with the overhead line conductor through the power supply cable. During this period, the contact becomes the power supply point, and the negative pole is connected with the track through the return cable. The corresponding contact is called the return point. During narrow gauge locomotive operation, the upper part of the electric locomotive running along the track obtains electric energy by contacting the overhead line with the pantograph, while the lower part uses the wheel to contact the track to form a circuit to make the traction motor work, so that the electric locomotive can drive the mine car.

It can be seen that the running track of the stringing electric locomotive is also the conductor of the current circuit. In order to reduce the voltage drop of traction power grid, conductor or copper strip is usually used to connect at the joint of rail to reduce the resistance at the joint.The stringing electric locomotive is composed of mechanical structure and electrical equipment.

According to the different power supply, mining electric locomotive can be divided into DC electric locomotive and AC electric locomotive. According to different power supply modes, DC electric locomotive can be divided into two types: stringing electric locomotive and battery electric locomotive.

At present, there are 1.5T, 3T, 7T, 10t, 14T, 20t and 30t stringing electric locomotives in China.
