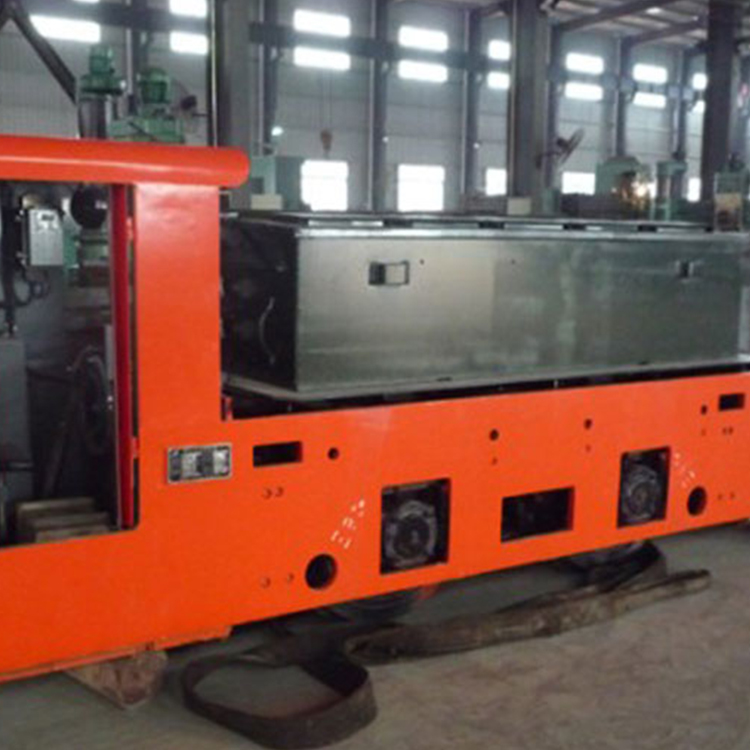

1.5T narrow gauge locomotive technical parameters
CJY1.5/6, 7, 9G (ZK1.5-6.7.9/100)
narrow gauge locomotive curb weight: 1.5T
Overhead locomotive gauge: 600mm; 762mm; 900mm
Traction of narrow gauge locomotive: 2.55 KN
narrow gauge locomotive speed: 4.54 Km/h
Large traction force of overhead electric locomotive: 3.68 KN
Overhead electric locomotive DC voltage: 100V
Traction motor of overhead electric locomotive: 3.5 KW×1
Overall length of overhead locomotive: 2340mm
Overall width of narrow gauge locomotive: 950mm; 950mm; 1100mm
The height from the rail surface to the ceiling of the narrow gauge locomotive: 1550mm
Traction height of narrow gauge locomotive: 320mm
Overhead motor locomotive wheelbase: 650mm
Overhead motor wheel base: φ460mm
The working height of the electric locomotive for narrow gauge locomotive: 1600mm~2000mm
Small curve radius of overhead electric locomotive: 5m
Overhead locomotive speed regulation mode: chopper

Overhead electric locomotive braking method: mechanical
