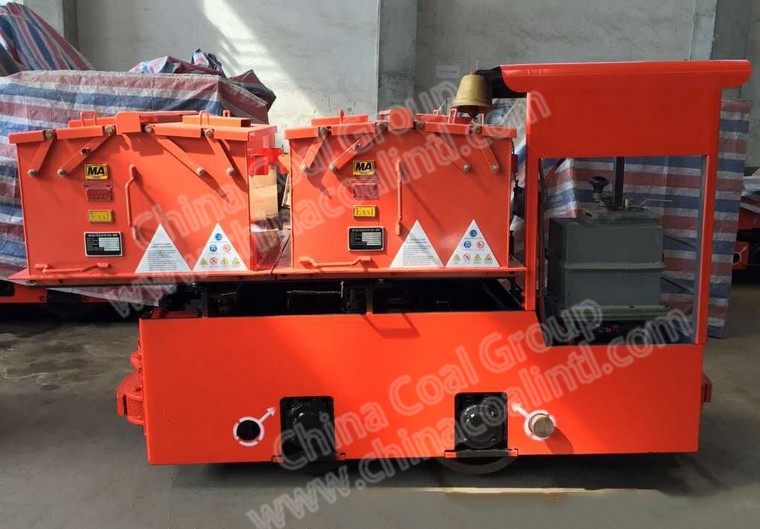

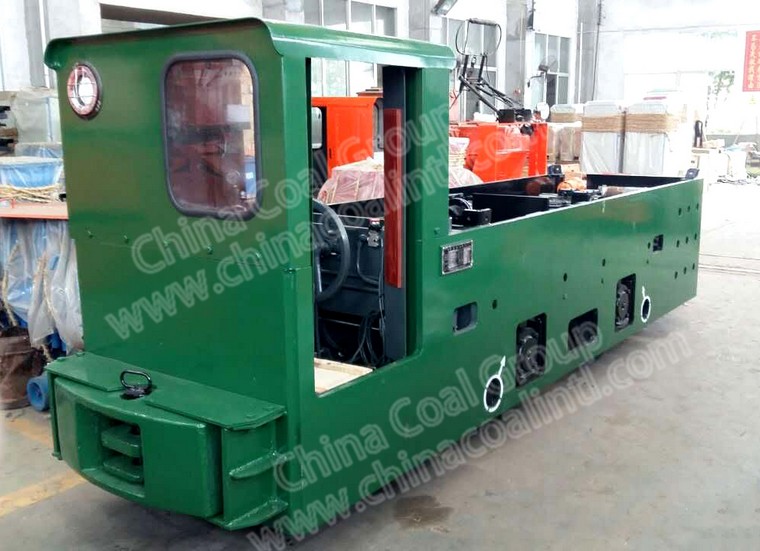

Name :CAY12 Underground Battery Locomotive For Mining
Application : Transportation in mining, tunneling and related construction
The battery locomotive starts smoothly, the speed is even, the operation is flexible, the overload capability is strong, and the electric energy is saved by about 30%, which prolongs the service life of the battery. It has the characteristics of large traction, high speed and strong carrying capacity, and it adopts a double-end driver's cab with good hope.
Main Parameter of|
locomotive Model No. |
CAY12/6GP |
CAY12/7GP |
CAY12/9GP |
|
specifications |
|||
|
Adhesive / total weight (t) |
12 |
12 |
12 |
|
Track gauge (mm) |
600 |
762 |
900 |
|
Wheelbase (mm) |
1400 |
1400 |
1400 |
|
Wheel diameter over tread |
680 |
680 |
680 |
|
Coupler height over Steel rail (mm) |
320/430 |
320/430 |
320/430 |
|
Min Curve radius (m) |
10 |
10 |
10 |
|
Battery volt rating (V) |
192/256(560Ah) |
192/256(560Ah) |
192/256(560Ah) |
|
Braking method |
Mechanical and electrical |
Mechanical and electrical |
Mechanical and electrical |
|
Max tractive effort (KN) |
32.9 |
32.9 |
32.9 |
|
Max speed (km/h) |
20 |
20 |
20 |
|
Rated speed per hour (km/h) |
10 |
10 |
10 |
|
Power of traction Motor (KW) |
2*30 |
2*30 |
2*30 |
|
Transmission |
Single level Spur gearing |
Single level Spur gearing |
Single level Spur gearing |
|
Controller |
AC frequency conversion |
AC frequency conversion |
AC frequency conversion |
|
Over all dimensions (mm) |
5300*1060*1590 |
5300*1340*1590 |
5300*1340*1590 |
|
Service & Application |
Mucking in mining & tunneling |
Mucking in mining & tunneling |
Mucking in mining & tunneling |
