1.Simple structure, easy in installation and maintenance.
2.Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3.High pressure double crank to control the die opening and closing.
4.Running in a high automatization and intellectualization, no pollution.
5.Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.

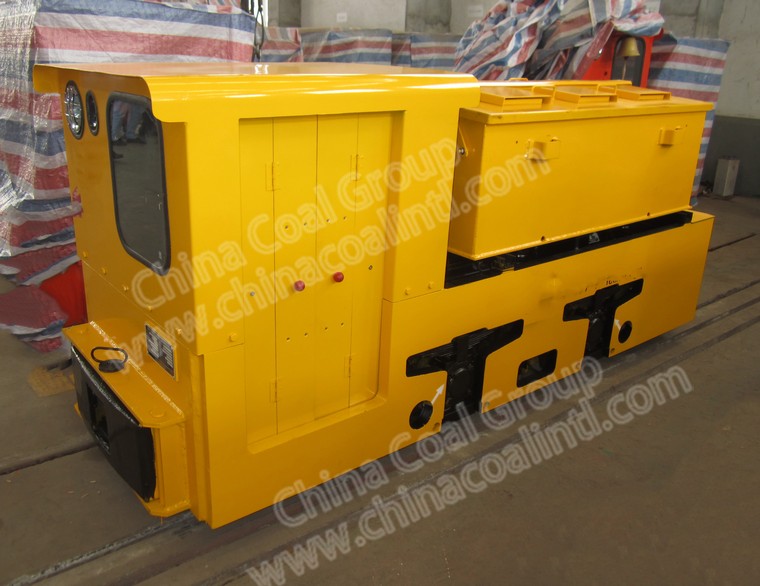

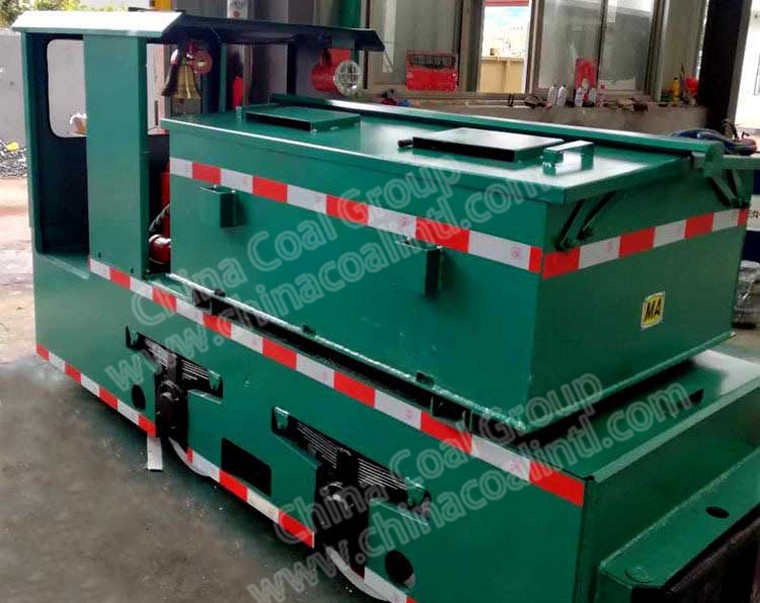

Main Parameter of|
locomotive Model No. specifications |
CAY8/6GP |
CAY8/7GP |
CAY8/9GP |
|
Adhesive / total weight (t) |
8 |
8 |
8 |
|
Track gauge (mm) |
600 |
762 |
900 |
|
Wheelbase (mm) |
1100 |
1100 |
1100 |
|
Wheel diameter over tread |
680 |
680 |
680 |
|
Coupler height over Steel rail (mm) |
320/430 |
320/430 |
320/430 |
|
Min Curve radius (m) |
7 |
7 |
7 |
|
Battery volt rating (V) |
132(440Ah) |
140(440Ah) |
192(440Ah) |
|
Braking method |
Mechanical and electrical |
Mechanical and electrical |
Mechanical and electrical |
|
Max tractive effort (KN) |
22 |
22 |
22 |
|
Max speed (km/h) |
20 |
20 |
20 |
|
Rated speed per hour (km/h) |
10 |
10 |
10 |
|
Power of traction Motor (KW) |
2*22 |
2*22 |
2*22 |
|
Transmission |
Single level Spur gearing |
Single level Spur gearing |
Single level Spur gearing |
|
Controller |
AC frequency conversion |
AC frequency conversion |
AC frequency conversion |
|
Over all dimensions (mm) |
4460*1060*1590 |
4400*1340*1590 |
4460*1340*1590 |
|
Service & Application |
Mucking in mining & tunneling |
Mucking in mining & tunneling |
Mucking in mining & tunneling |
