Introduction of CJY 1.5 Tons Trolley Electric Mining Locomotive
CJY 1.5 Tons Overhead Trolley Mining Locomotive's traction voltage is divided into 100V and 250V. Its structure has two kinds of inner frame and outer frame, all of which are graded speed control vehicles. Its characteristics: stable and flexible operation. Easy to operate, easy to maintain and repair. With the brake brake, the braking effect is good.
CJY 1.5 Tons Overhead Line Electric Mining Locomotives are designed for horizontal rail transport especially in mines and enclosed spaces, to the non-hazardous areas without explosion risks. They can work on slopes of rail tracks to 35‰, with track gauge from 500 to 1060 mm, at ambient temperatures from -10 to 40 °C.
Main Parameter of CJY 1.5 Tons Trolley Electric Mining Locomotive
|
Model
|
|
Adhesive / Total weight (t)
|
CJY1.5/6,7,9
|
|
Track gauge (mm)
|
1.5 t
|
|
Hourly Traction (KN)
|
600,762 or 900mm
|
|
Max Traction (KN)
|
3.24kN
|
|
Hourly speed(Km/h)
|
3.68kN
|
|
DC Voltage (V)
|
6.6km/h
|
|
Power (KW)*Unit
|
250V
|
100V
|
|
Length(mm)
|
6.5kW×1
|
|
Width(mm)
|
2370mm
|
|
Height(mm)
|
914mm；1076mm；1214mm
|
|
Wheelbase (mm)
|
1550mm
|
|
Wheel diameter (mm)
|
650 mm
|
|
Min Curve radius (m)
|
460mm
|
|
Controller
|
5m
|
|
Braking method
|
Resistance or IGBT
|
|
|
Mechanical Brake
|

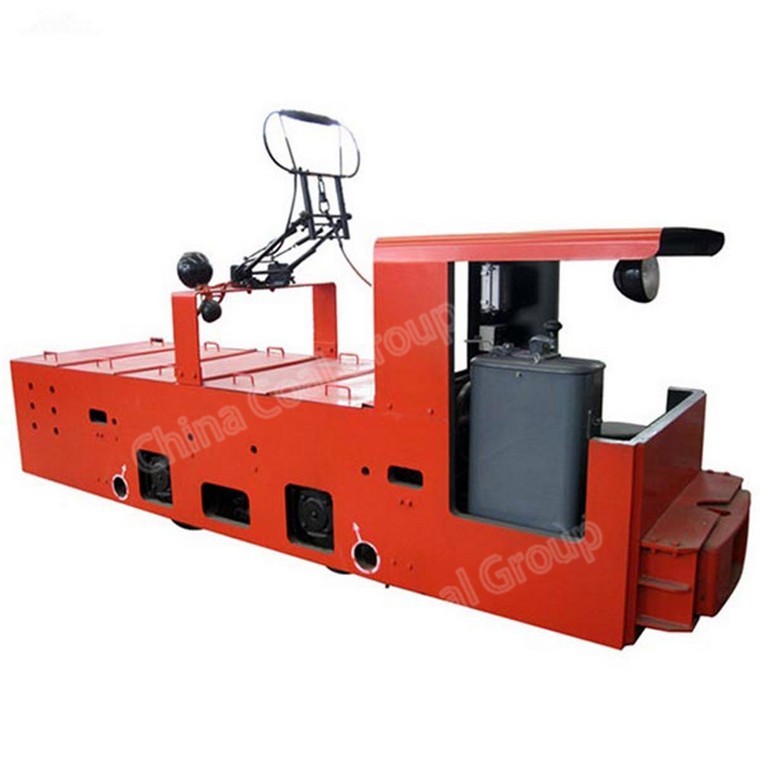

PHOTOS OF CJY 1.5 Tons Trolley Electric Mining Locomotive

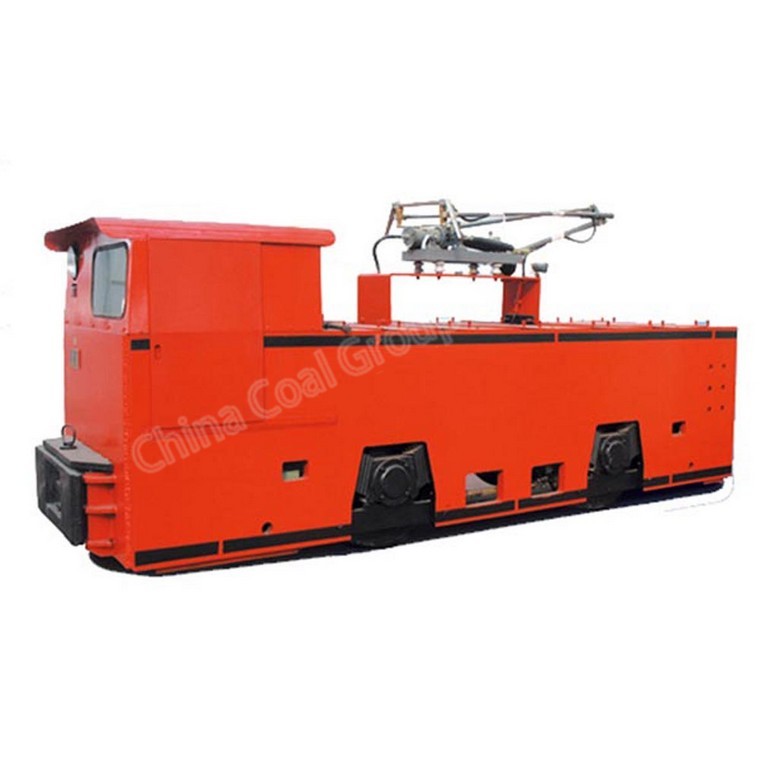

PHOTOS OF CJY 1.5 Tons Trolley Electric Mining Locomotive
