CJY 3 T Trolley Locomotive For Mining

CJY 3 T Trolley Locomotive For Mining

Date:2018-11-09     Label:

Trolley Locomotive

CJY 3 T Trolley Locomotive

Mining Locomotive

CJY 3 T Trolley Locomotives have single cabin weighing from 5 t to 20 tons; the cabin is removable for easier transport into underground tunnels. Transmission of torque moment from the electric motors

Contact Us Product Center
Introduction of

CJY 3 T Trolley Locomotive For Mining

CJY 3 T Trolley Locomotives have single cabin weighing from 5 t to 20 tons; the cabin is removable for easier transport into underground tunnels. Transmission of torque moment from the electric motors is through the axle gearbox to travel wheels. The chassis is of dual-axle type and travel wheels are secured with interchangeable rims. Suspension of locomotives is provided by elastic rubber-metal blocks of sagittal shape. The electric motors are maintenance-free, three-phase, asynchronous, with external cooling, and Speed and engine torque is controlled by the frequency converter. Trolleys and axle bus-bars/pantographs are fitted with carbon or aluminum strips. Engine and brake control is proportional by means of one lever in its entire range of travel speed.

Main Parameter of

CJY 3 T Trolley Locomotive For Mining

Model Name

CJY3/6, 7, 9GB

Adhesive Weight

3 tons

Track Gauge

600, 762 or 900 mm

Traction

6.1 kN,5.74 kN

Max. Traction

7.36 kN

Speed

10.6 km/h ,7.5 km/h

Voltage

550 V,250 V

Power

6.5kW*2 , 12kW*1

Size(L*W*H)

2700mm, 2750mm

940, 1082 or 1220mm

1550mm

Pantograph

1800~2000mm

Wheelbase

816mm ,850 mm

Wheel Diameter

Φ650 mm ,Φ520 mm

Min. Turning Radius

5.7m ,6 m

Electromechanical Controller

Resistance or IGBT Converter

Brake

Mechanical Brake

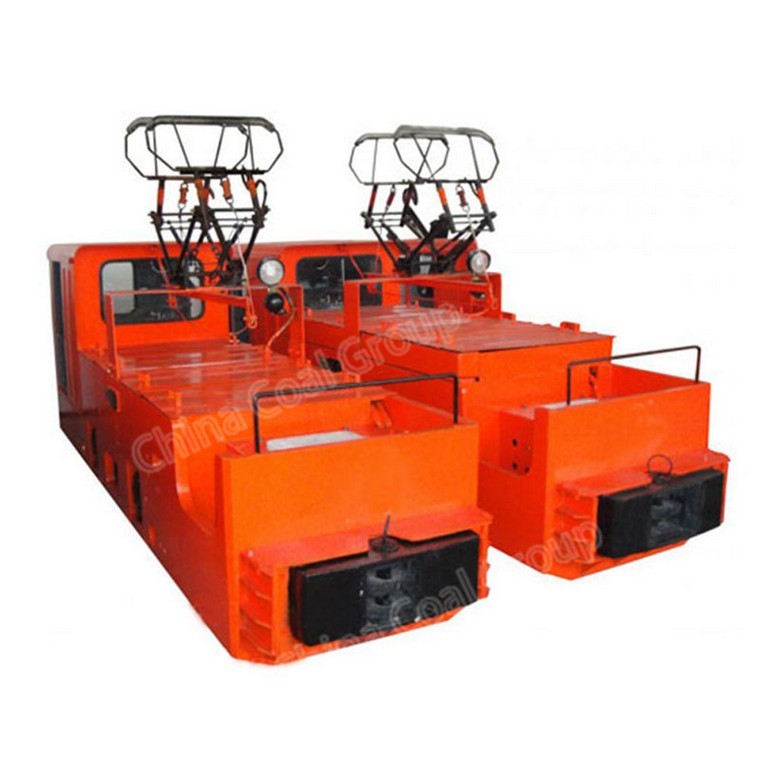

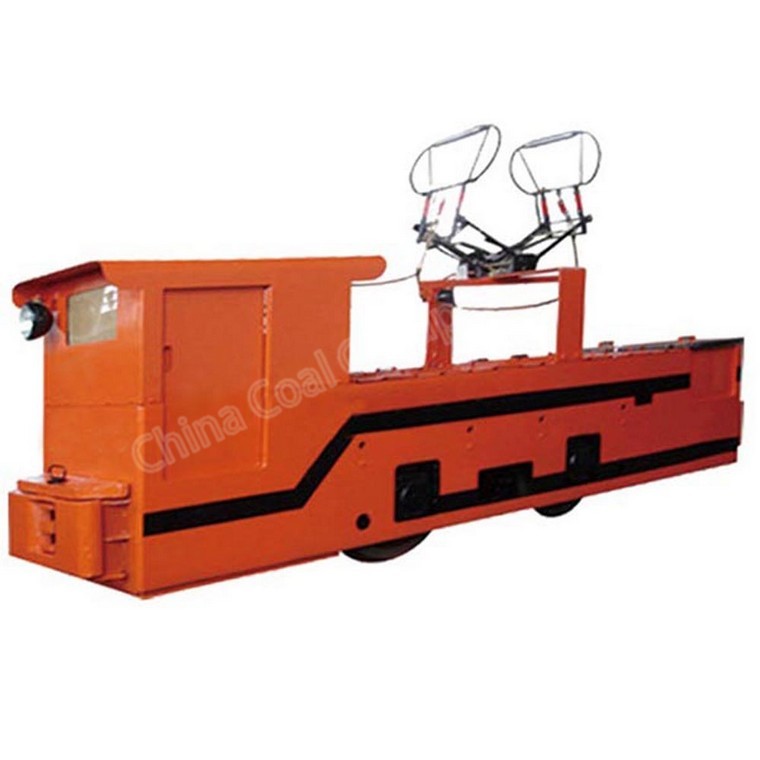

PHOTOS OF

CJY 3 T Trolley Locomotive For Mining

CJY 3 T Trolley Locomotive For Mining
CJY 3 T Trolley Locomotive For Mining
PHOTOS OF

CJY 3 T Trolley Locomotive For Mining
