Basing on special advantage in the field of Mining Equipment control system and advanced technology of AC frequency conversion , we have developed wide range of electrical locomotives :battery powered and trolley type from 2.5 tons through to 55 tons suitable for various track gauge including 600mm, 762mm, 900mm and 1435mm. with the unique feature such as the cab available in three designs: one side type, central type and in Tandem Operation type; Locomotives with Radio Remote Control; and Explosion proof locomotive. some of Models passed MA certificate , mainly service for tunneling , mining, shield construction and related industrial applications. All locomotives are track tested prior to shipment to ensure reliable operation and safe control.

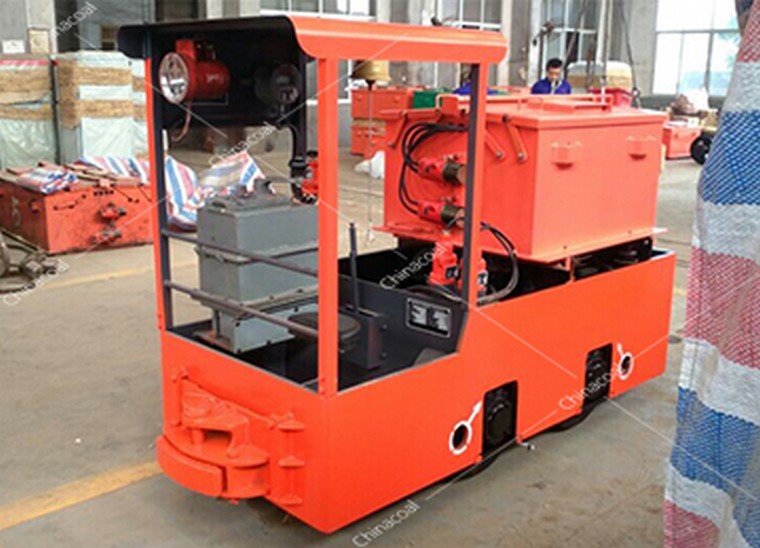

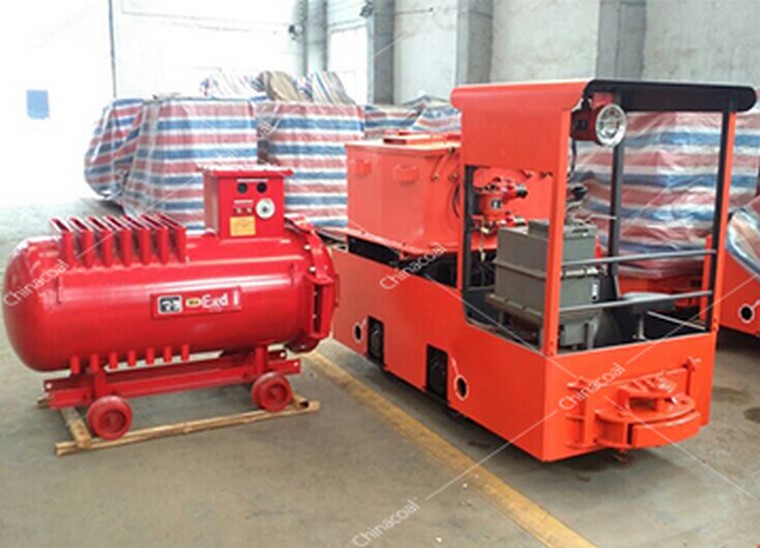

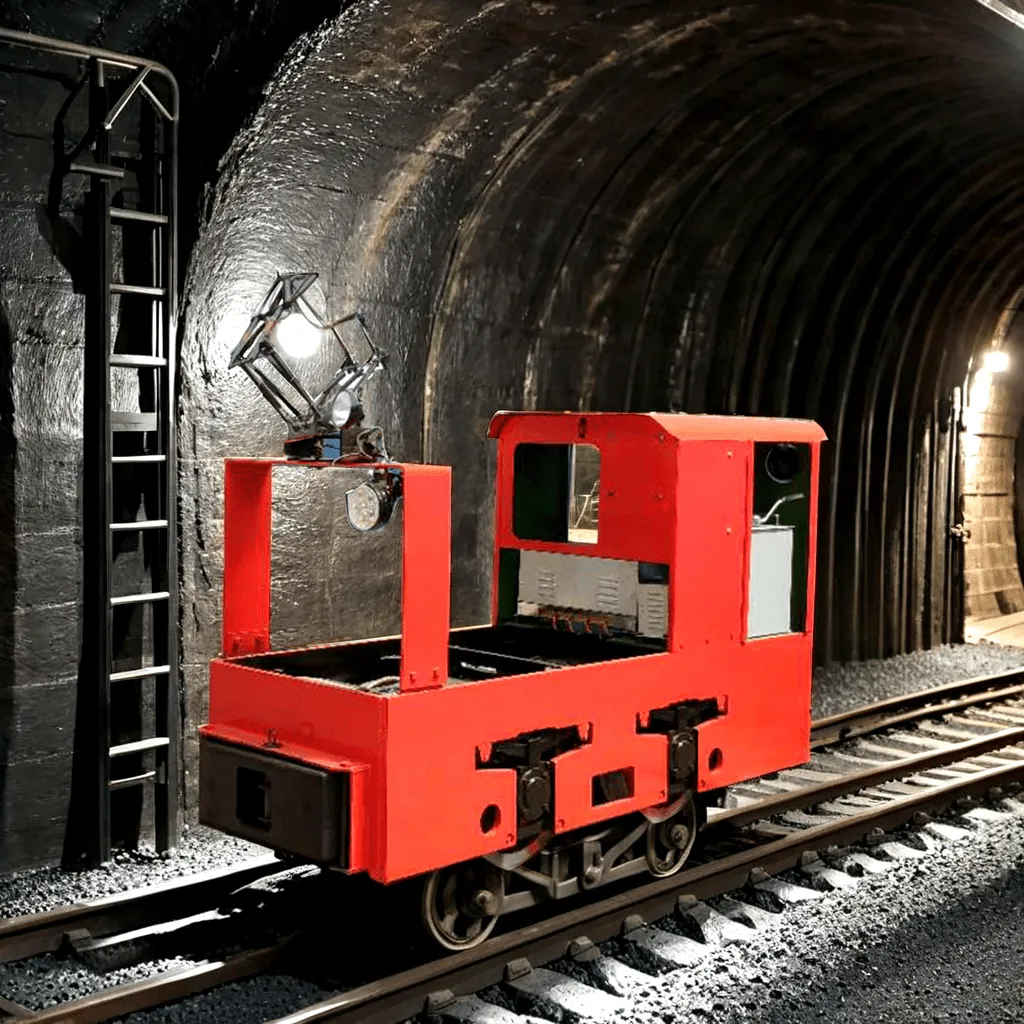

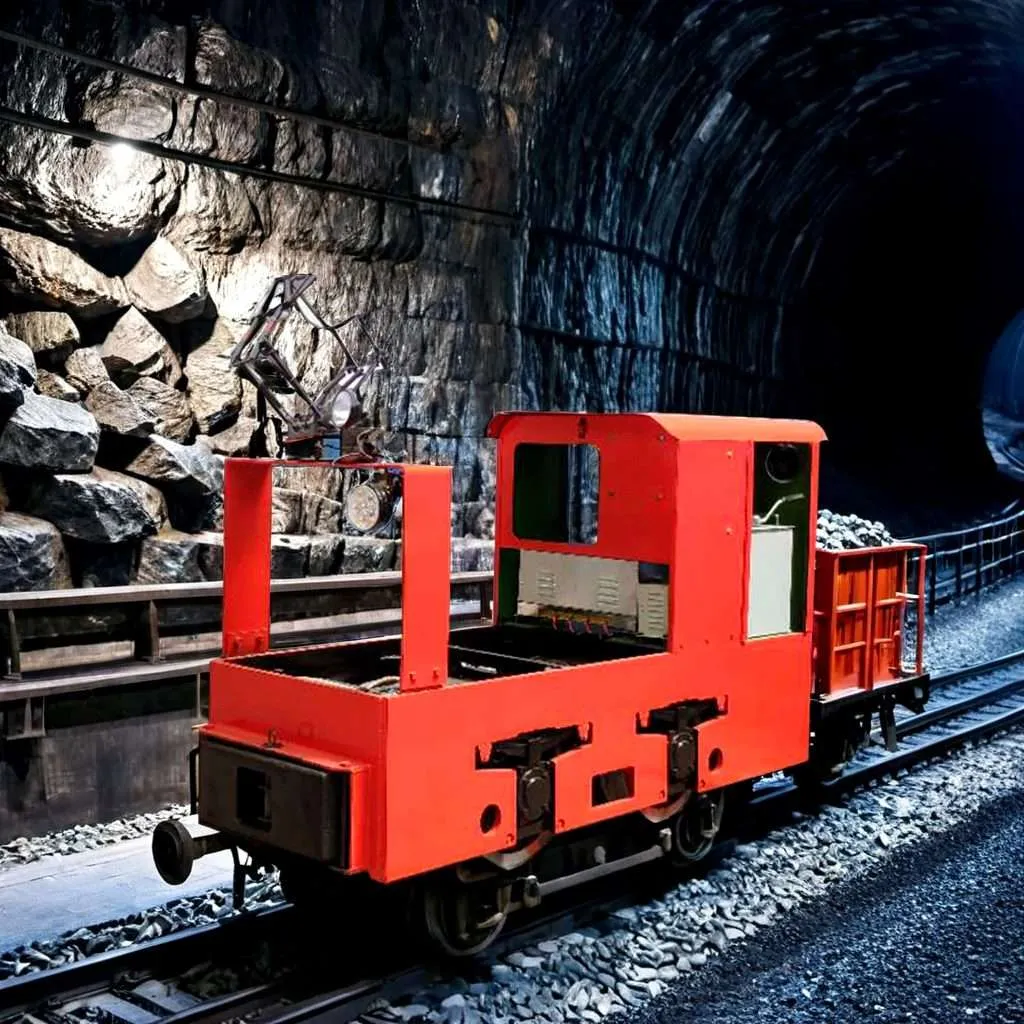

The CAY12 Underground Mining Battery Powered Electric Locomotive is powerful with great tractive effort, heavy duty loading capacity and climbing and moving smoothly.
Braking control system is safe, intelligent, reliable and easy to operate.
Less maintenance requirements.
Energy-saving , up to 25-30% energy saving compared to DC driving type.
Eco-Friendly because its less emission.
|
locomotive Model No. |
CAY12/6GP |
CAY12/7GP |
CAY12/9GP |
|
specifications |
|||
|
Adhesive / total weight (t) |
12 |
12 |
12 |
|
Track gauge (mm) |
600 |
762 |
900 |
|
Wheelbase (mm) |
1400 |
1400 |
1400 |
|
Wheel diameter over tread |
680 |
680 |
680 |
|
Coupler height over Steel rail (mm) |
320/430 |
320/430 |
320/430 |
|
Min Curve radius (m) |
10 |
10 |
10 |
|
Battery volt rating (V) |
192/256(560Ah) |
192/256(560Ah) |
192/256(560Ah) |
|
Braking method |
Mechanical and electrical |
Mechanical and electrical |
Mechanical and electrical |
|
Max tractive effort (KN) |
32.9 |
32.9 |
32.9 |
|
Max speed (km/h) |
20 |
20 |
20 |
|
Rated speed per hour (km/h) |
10 |
10 |
10 |
|
Power of traction Motor (KW) |
2*30 |
2*30 |
2*30 |
|
Transmission |
Single level Spur gearing |
Single level Spur gearing |
Single level Spur gearing |
|
Controller |
AC frequency conversion |
AC frequency conversion |
AC frequency conversion |
|
Over all dimensions (mm) |
5300*1060*1590 |
5300*1340*1590 |
5300*1340*1590 |
|
Service & Application |
Mucking in mining & tunneling |
Mucking in mining & tunneling |
Mucking in mining & tunneling |
