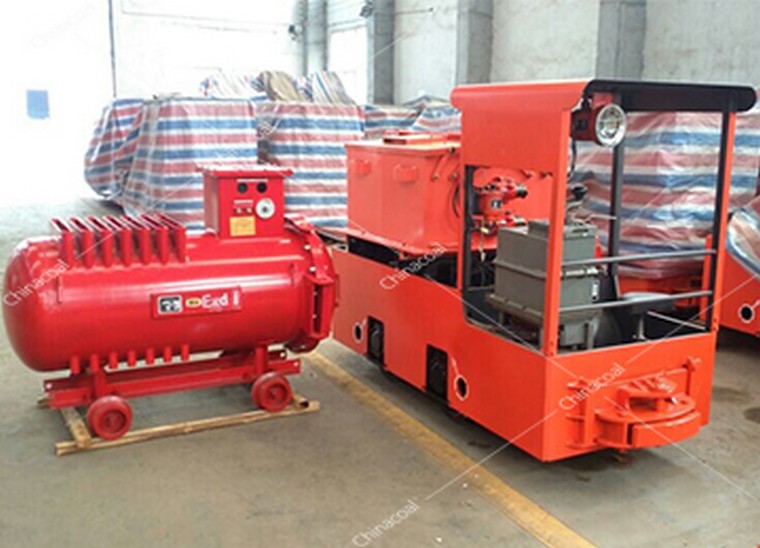

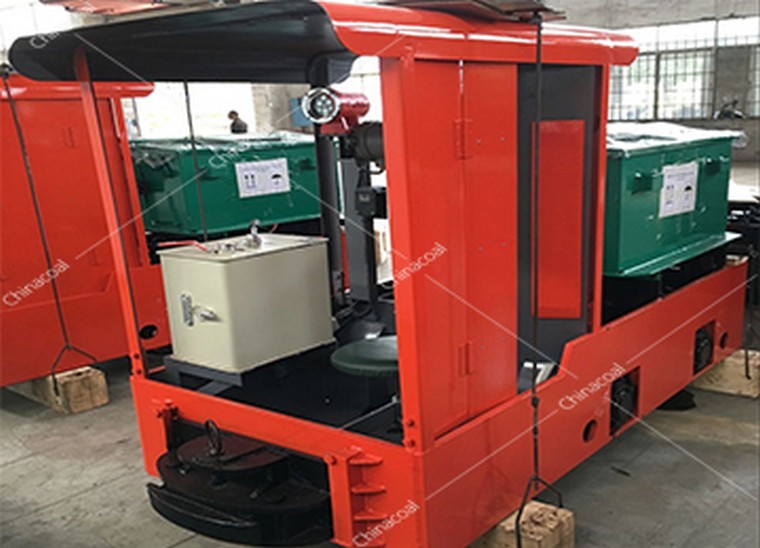

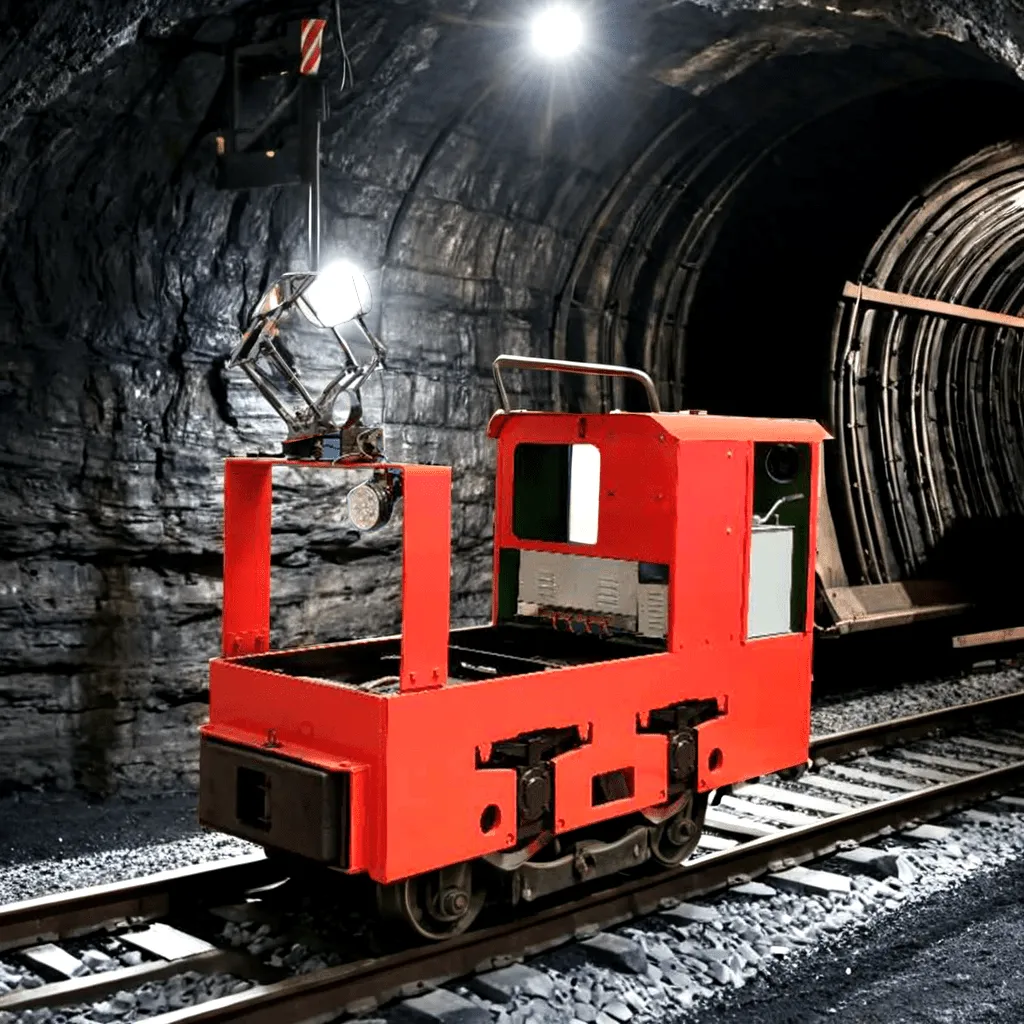

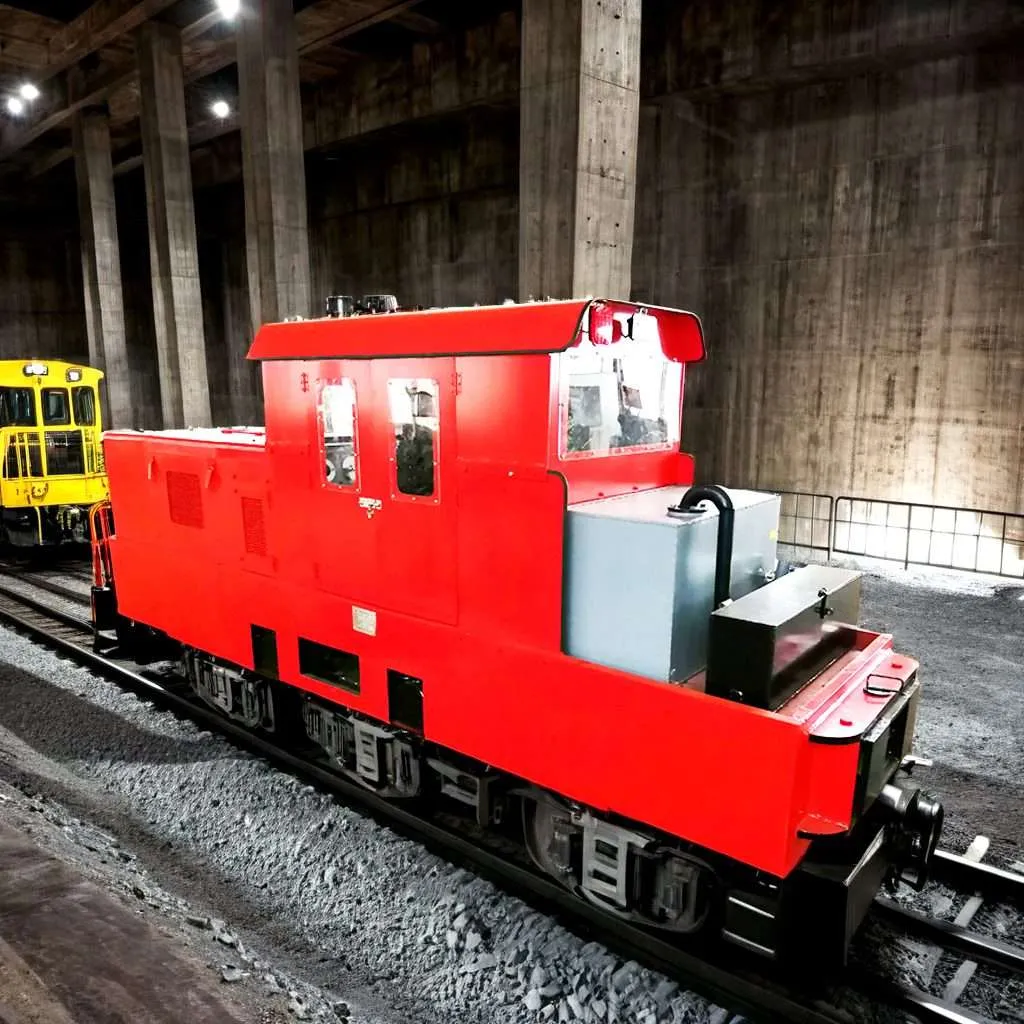

Electric Locomotive 2.5T Battery Locomotive For Subway Tunneling is DC-AC driving, Narrow Gauge Locomotive and Underground Mining Locomotive, suitable for transportation tracting on the narrow rail for the field of coal, metallurgic,mine,forest, railway,road tunnel construction and etc.
Main Parameter of|
Specifications & Model Number |
||
|
Specification |
CAY25/7GP |
CAY25/9GP |
|
Adhesive/ Total Weight(t) |
2.5 |
2.5 |
|
Track Gauge(mm) |
762 |
900 |
|
Wheelbase(mm) |
2000 |
2000 |
|
Wheel Diameter(mm) |
680 |
680 |
|
Coupler Height Over Steel Rail(mm) |
320/430 |
320/430 |
|
Min Curve Radius(m) |
30 |
30 |
|
Battery Volt Rating(V) |
288/540(620Ah) |
288/540(620Ah) |
|
Braking Method |
Mechanical，Electrical，Air |
Mechanical，Electrical，Air |
|
Max Tractive Effort(KN) |
68.7 |
68.7 |
|
Max Speed(km/h) |
25 |
25 |
|
Rated Speed per hour(km/h) |
8.8 |
8.8 |
|
Power of Traction Motor(KW) |
2*65 |
2*65 |
|
Transmission |
Dual Level Gearing |
Dual Level Gearing |
|
Controller |
AC Frequency Conversion |
AC Frequency Conversion |
|
Over all Dimensions |
6700*1550*2300 |
6700*1550*2300 |
|
Service& Application |
Mucking in Mining& Tunneling |
Mucking in Mining& Tunneling |
