Based on our special advantages in the field of mining equipment control systems and advanced AC frequency conversion technology, we have developed various Underground Mining Locomotive:
The Battery Locomotive and Trolley Locomotive range from 2.5 tons to 55 tons is suitable for various track gauges, including 600 mm, 762 mm, 900 mm, and 1435 mm.
With unique functions, such as the cab has three designs: single side, central, and series operation; Mining Locomotive and Explosion-proof Mining Locomotive with radio remote control.
Some models have passed the MA certificate and mainly serve tunnel, mining, shield construction, and related industrial applications. All locomotives have undergone track testing before shipment to ensure reliable operation and safe control.

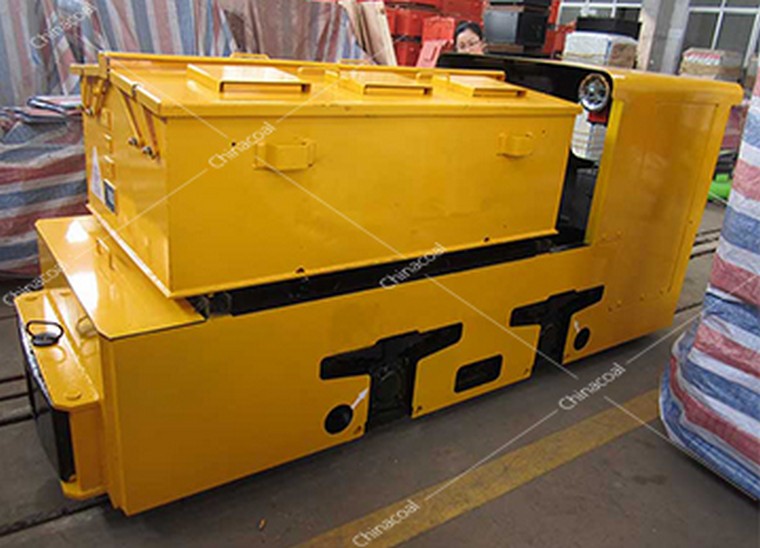

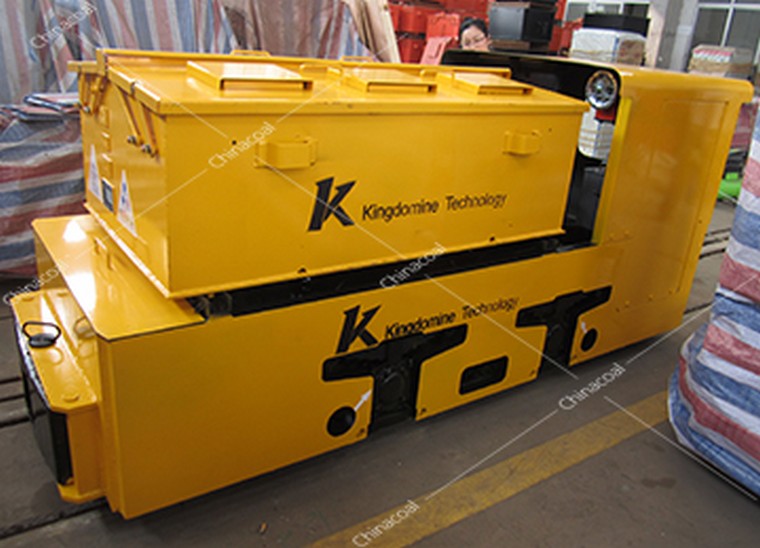

CAY12 Underground Mining Locomotive has strong power, strong traction, strong load carrying capacity, and smooth climbing. The brake control system is safe, intelligent, reliable, and easy to operate. Energy saving, up to 25-30% compared to DC drive types. Environmentally friendly because it emits less emissions.
Main Parameter of|
CAY12/6GP |
CAY12/7GP |
CAY12/9GP |
|
|
specifications |
|||
|
Adhesive / total weight (t) |
12 |
12 |
12 |
|
Track gauge (mm) |
600 |
762 |
900 |
|
Wheelbase (mm) |
1400 |
1400 |
1400 |
|
Wheel diameter over tread |
680 |
680 |
680 |
|
Coupler height over Steel rail (mm) |
320/430 |
320/430 |
320/430 |
|
Min Curve radius (m) |
10 |
10 |
10 |
|
Battery volt rating (V) |
192/256(560Ah) |
192/256(560Ah) |
192/256(560Ah) |
|
Braking method |
Mechanical and electrical |
Mechanical and electrical |
Mechanical and electrical |
|
Max tractive effort (KN) |
32.9 |
32.9 |
32.9 |
|
Max speed (km/h) |
20 |
20 |
20 |
|
Rated speed per hour (km/h) |
10 |
10 |
10 |
|
Power of traction Motor (KW) |
2*30 |
2*30 |
2*30 |
|
Transmission |
Single level Spur gearing |
Single level Spur gearing |
Single level Spur gearing |
|
Controller |
AC frequency conversion |
AC frequency conversion |
AC frequency conversion |
|
Over all dimensions (mm) |
5300*1060*1590 |
5300*1340*1590 |
5300*1340*1590 |
|
Service & Application |
Mucking in mining & tunneling |
Mucking in mining & tunneling |
Mucking in mining & tunneling |
