Introduction of CCG Mining Explosion-proof Diesel Locomotives
CCG Mining Explosion-proof Diesel Locomotives is a kind of driven, the vehicle with proof performance for containing flammable gas and coal dust and other dangerous places, traction, transport of mining locomotives, traction battery and then following the hydraulic transmission of a utility model traction. Mine explosion-proof drum & rail locomotive diesel engine series, is in line with the ideal of coal mine production safety transportation equipment. It is reasonable structure, compact, energy saving, high efficiency, easy operation and maintenance, frame lines motor vehicle, motorcycle batteries, compared does not need to set up traction power, do not need AC power and charging equipment.
Characteristics of CCG Mining Explosion-proof Diesel Locomotives
1.Double-ended locomotive driving, easy operation and passengers, and better outlook;
2.Body short, maintaining roadway turning radius by the flexibility and stability;
3.Electric starter, control rooms for sound processing, noise reduction;
4.By (European) import the essence of device, the second exhaust gas treatment, to further reduce emissions.
Main Parameter of CCG Mining Explosion-proof Diesel Locomotives
|
Model (basic
parameter)
Item
|
CCG 3.0/600J (B)
|
CCG 5.0/600J (B)
|
CCG8.0/600J
|
|
Matched Power Model
|
ZS1115FB
|
YH1125SFB
|
YH4108DFB(A)
|
|
Dimension (L*W*H) mm
|
2400*920(1000)*1600
|
3020*1000(1098)*1600
|
3700*1100*1600
|
|
Weight kg
|
3000
|
5000
|
8000
|
|
Greatest Traction
Force KN
|
4.5
|
7.5
|
12
|
|
Pulling Tonnage T
|
15
|
22
|
35
|
|
Gauge mm
|
600(made to order)
|
|
Wheelbase mm
|
706(712)
|
880(860)
|
980
|
|
Greatest Speed km/h
|
15+1
|
17+1
|
20+2
|
|
Diesel Engine Power (kw)/Rotating Speed (r/min)
|
11/2200
|
14.7/2200
|
52/2400
|
|
Smallest Railway Orbit m
|
5
|
6
|
7
|
|
Greatest Braking Force N
|
5000
|
8000
|
12800
|
|
Traction Height mm
|
270 320
|
320 430
|
320 430
|
|
Braking Distance m
|
40
|
|
Height Above Ground mm
|
80
|
125
|
125
|
|
Braking Mode
|
foot and machine control
|
air and hand wheel control
|
|
Exhaust Quality
|
CO≤0.1% NOX≤0.08%
|

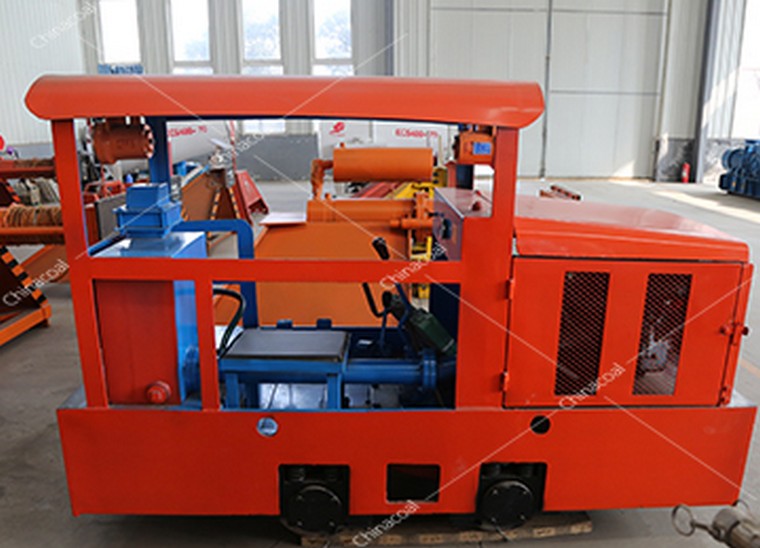

PHOTOS OF CCG Mining Explosion-proof Diesel Locomotives

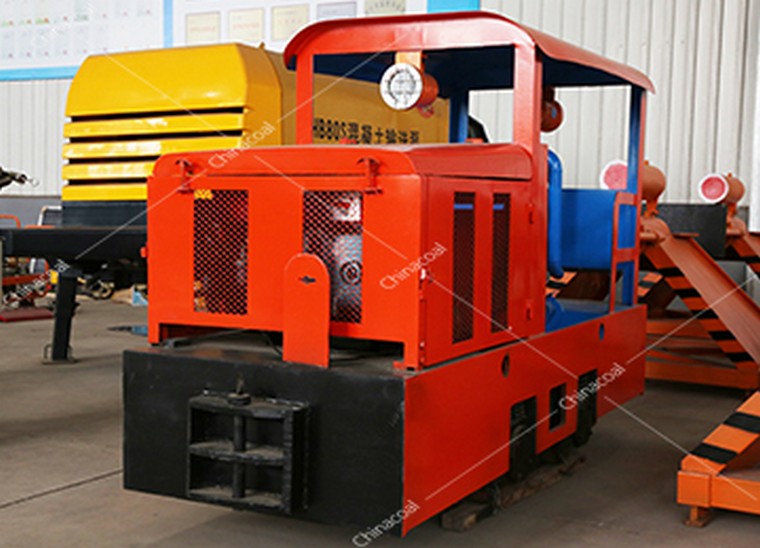

PHOTOS OF CCG Mining Explosion-proof Diesel Locomotives
