Introduction of 5T Underground Mining Electric Diesel Locomotive
5T Underground Mining Electric Diesel Locomotive is in line with the ideal of coal mine production safety transportation equipment. Small investment, the use of low maintenance costs. Meanwhile, the product configuration headlights, automatic protection devices, cables are flameproof or intrinsically safe type, equipped with a waste gas purification plant, very safe, reliable and does not pollute the environment. Mine explosion-proof locomotive, the use of exhaust gas purification system that allows diesel engine exhaust emissions to meet explosion-proof "diesel technology for coal mine explosion test standard" requirement. Particularly suitable for the remote areas, lack of electricity, less electricity, gas and coal dust explosions which are dangerous places of the mine rail practical. So the traction is not only the advantage of a tractor battery, but also safer, more economical, easier maintenance. Practice confirmed that the product is the ideal auxiliary transport coal mine equipment.
Main Parameter of 5T Underground Mining Electric Diesel Locomotive
|
Models
|
CCG 5.0/600J (B)
|
|
Matched Power Model
|
YH1125SFB
|
|
Dimension (L*W*H) mm
|
3020*1000(1098)*1600
|
|
Weight kg
|
5000
|
|
Greatest Traction
Force KN
|
7.5
|
|
Pulling Tonnage T
|
22
|
|
Gauge mm
|
600
|
|
Wheelbase mm
|
880(860)
|
|
Greatest Speed km/h
|
17+1
|
|
Diesel Engine Power (kw)/Rotating Speed (r/min)
|
14.7/2200
|
|
Smallest Railway Orbit m
|
6
|
|
Greatest Braking Force N
|
8000
|
|
Traction Height mm
|
320 430
|
|
Height Above Ground mm
|
125
|

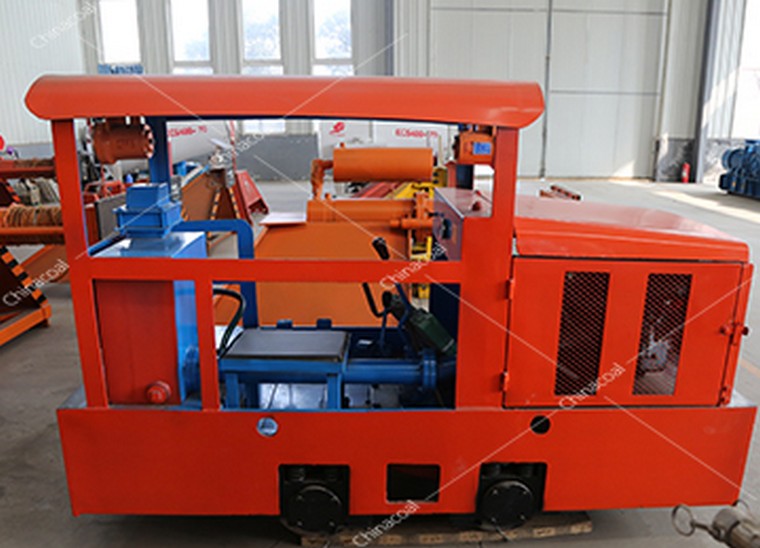

PHOTOS OF 5T Underground Mining Electric Diesel Locomotive

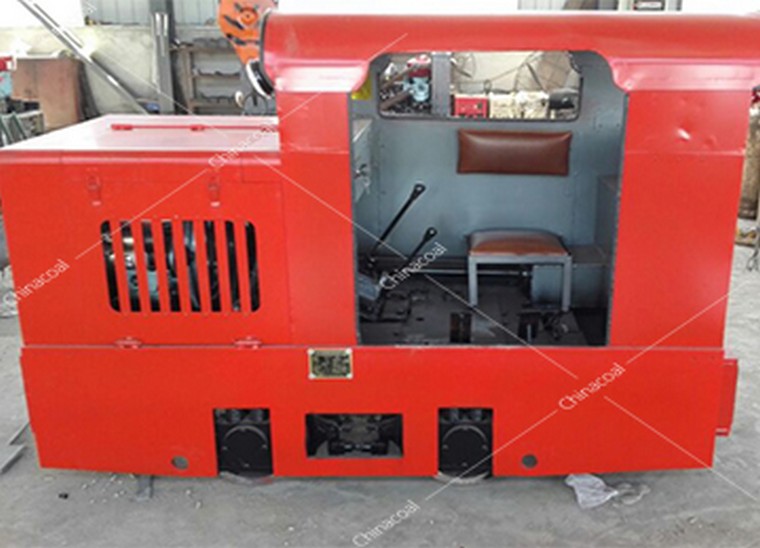

PHOTOS OF 5T Underground Mining Electric Diesel Locomotive
Product comment 5T Underground Mining Electric Diesel Locomotive
