Introduction of CCG-5.0/600 Double Cylinder Explosion-Proof Diesel Locomotive
These locomotives are designed for horizontal rail transport; they are certified according to European safety standards and meet their requirements. They can work on slopes of rail tracks to 35‰, with track gauge from 500 up to 1435 mm, at ambient temperatures from -35 to +40 °C.
Locomotives are weighing from 5 t to 22 tons; single cabin of compact design, the cabin is elevated with views to both driving directions. Diesel engines are with power from 35 to 250 kw.
Main Parameter of CCG-5.0/600 Double Cylinder Explosion-Proof Diesel Locomotive
|
Model
|
CCG-5.0/600 double cylinder explosion-proof diesel locomotive
|
Traction tonnage(t)
|
40
|
|
Dimension (L*W*H) mm
|
2400*920(1000)*1600
|
Weight
|
5000 kg
|
|
Greatest Traction Force KN
|
12
|
Greatest Speed (no-load km/h)
|
forward:14.6 backward:12.5
|
|
Greatest Speed (rated load km/h
|
forward:11.6 backward:10
|
Smallest Railway Orbit m
|
7
|
|
Wheelbase (mm)
|
900
|
Gauge (mm)
|
600
|
|
Traction Height (mm)
|
270 320 430
|
Dimension (L*W*H mm)
|
320*280*180
|
|
Diesel Engine Power (kw)/Rotating Speed (r/min)
|
17.24/2200
|
|
|

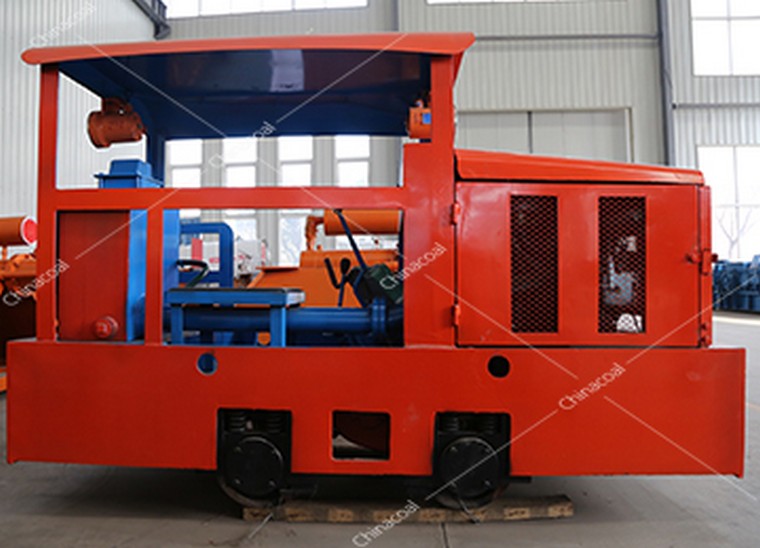

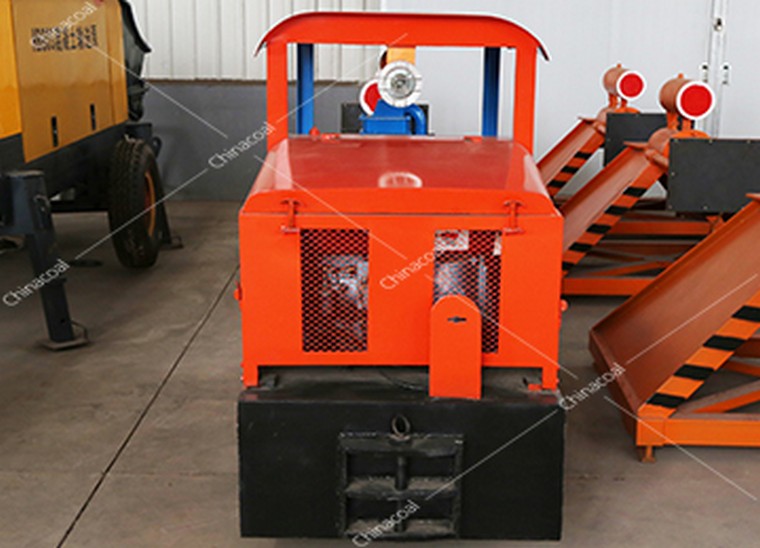

PHOTOS OF CCG-5.0/600 Double Cylinder Explosion-Proof Diesel Locomotive

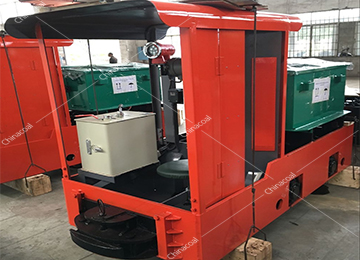

PHOTOS OF CCG-5.0/600 Double Cylinder Explosion-Proof Diesel Locomotive
