INTRODUCTION OF CTY MINE BATTERY LOCOMOTIVE UNDERGROUND ELECTRIC LOCOMOTIVE
Battery locomotive is a mining equipment with short wheelbase, small turning radius, fast speed and high traction. It is used to haul transport trucks and to transport minerals, equipment and personnel. It should be noted that this type locomotive is not explosion-proof, so it can only be used in general mines and mines and hazardous locations where there is no danger of explosion.
1.Strong safety performance, energy saving and smooth speed regulation.
2.Large battery pack capacity, long battery life and long service life.
3.High traction, fast speed and strong carrying capacity。
4.The structure is simple and easy to maintain, and the starting is smooth without obvious impact.
MAIN PARAMETER OF CTY MINE BATTERY LOCOMOTIVE UNDERGROUND ELECTRIC LOCOMOTIVE
|
locomotive
Model No.
specifications
|
CAY8/6GP
|
CAY8/7GP
|
CAY8/9GP
|
|
Adhesive / total weight (t)
|
8
|
8
|
8
|
|
Track gauge (mm)
|
600
|
762
|
900
|
|
Wheelbase (mm)
|
1100
|
1100
|
1100
|
|
Wheel diameter over tread
|
680
|
680
|
680
|
|
Coupler height over
Steel rail (mm)
|
320/430
|
320/430
|
320/430
|
|
Min Curve radius (m)
|
7
|
7
|
7
|
|
Battery volt rating (V)
|
132(440Ah)
|
140(440Ah)
|
192(440Ah)
|
|
Braking method
|
Mechanical and electrical
|
Mechanical and electrical
|
Mechanical and electrical
|
|
Max tractive effort (KN)
|
22
|
22
|
22
|
|
Max speed (km/h)
|
20
|
20
|
20
|
|
Rated speed
per hour (km/h)
|
10
|
10
|
10
|
|
Power of traction Motor (KW)
|
2*22
|
2*22
|
2*22
|
|
Transmission
|
Single level
Spur gearing
|
Single level
Spur gearing
|
Single level
Spur gearing
|
|
Controller
|
AC frequency conversion
|
AC frequency conversion
|
AC frequency conversion
|
|
Over all dimensions (mm)
|
4460*1060*1590
|
4400*1340*1590
|
4460*1340*1590
|
|
Service & Application
|
Mucking in mining & tunneling
|
Mucking in mining & tunneling
|
Mucking in mining & tunneling
|

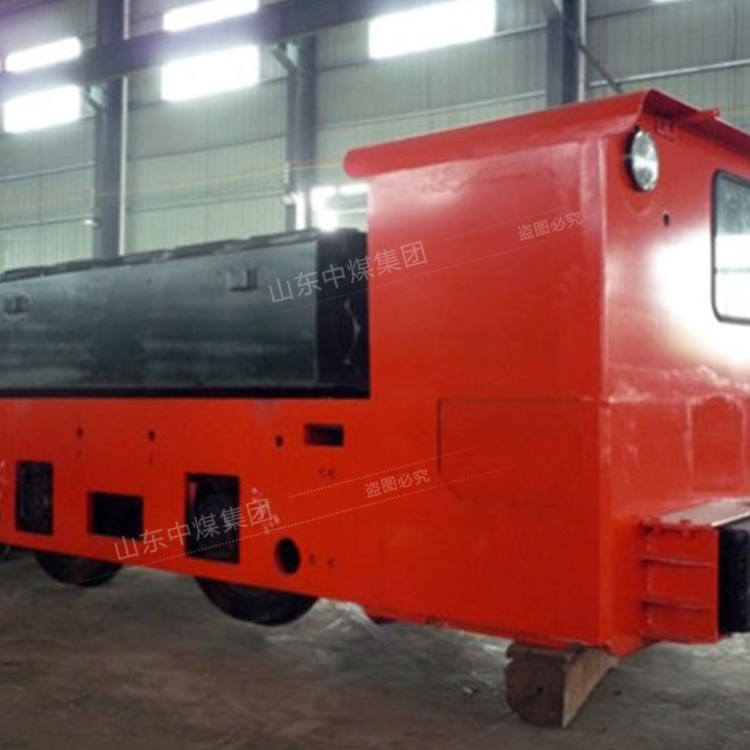

PHOTOS OF CTY MINE BATTERY LOCOMOTIVE UNDERGROUND ELECTRIC LOCOMOTIVE
CTY MINE BATTERY LOCOMOTIVE UNDERGROUND ELECTRIC LOCOMOTIVE
